    Hydraulic Dredge With Strict Quality Control And Thoughtful Customer Service

    Ask Lasest Price
    Brand Name : Leader Dredger
    Model Number : LD1200
    Certification : ISO 9001
    Price : Free Consultation
    Payment Terms : L/C, T/T
    Delivery Time : Peak season lead time: 1-3 months ; Off season lead time: 1-3 months
    Supply Ability : 20
    • Product Details
    • Company Profile

    Hydraulic Dredge With Strict Quality Control And Thoughtful Customer Service

    Hydraulic Dredge With Strict Quality Control And Thoughtful Customer Service


    1. Why Choose Leader Dredger Hydraulic Dredge:


    Leader Dredger is known for its efficient, sturdy structure, unparalleled economies of scale and low operating costs. Its reliability and ease of use are suitable for all conditions. The latest series are designed to be more sustainable, safe and efficient. Their modular structure means they are easy to transport and can be


    quickly debugged on site. Can provide them with complete and integrated equipment and service packages, including work boats, spare parts, training, dredging consultation and maintenance support.


    1. Quality assurance. Every step of production is strictly supervised. Passed ISO9001 certification.


    2. Hydraulic system. The reliable hydraulic system stops working to protect the dredger from facing big rocks.


    3. Efficient, large-scale processing capacity, ranging from one cubic meter to 200 cubic meters per hour.


    4. Flexible use, strong anti-wave ability, can be used in stormy coastal ports, rivers, etc.


    5. Good after-sales service. Overseas service for installation and commissioning and problem consultation.


    6. Customization. Can be produced according to customer requirements, such as color.


    2. About Hydraulic Dredge Services:


    Sign long-term after-sales service agreements with customers;

    1. Make a reasonable and practical design according to the customer's project needs and requirements;

    2. Engineers will be sent to install, test and debug the new machine;

    3. Operation service and maintenance guide (new operator training);

    4. Troubleshooting and diagnosis;

    5. Replacement suggestions and spare parts at competitive prices;

    6. Provide lifetime after-sales service for all customers.


    3. LEADER DREDGER LD1200IP TECHNICAL SPECIFICATIONS


    A . Dredging Features


    Standard dredging depth(m) Maximum mixture12m
    capacity(m/h)1200m³/h
    Solid capacity(approx)240m³/h
    Dredging pump mode350/300mm

    B . Principal characteristics


    Overall length(m)28m
    Breadth(m)6.8m
    Draught(m)1.3m
    Discharge distance(m)700m
    Total dry weight approx(MT)120MT
    Ladder length16m

    C . Dredge pump: Australia technology Pump


    By alloy cast iron material for better abrasion resistance, abrasive, hardness, more than68HRC.Bigger working capacity, more efficiency, driven through gearbox.
    Maximum mixture capacity(m/h)1200m³/h
    Solid capacity(approx)240m³/h


    D . Engine


    Main diesel engine(Cummins)

    448kw(600hp)

    supply power for dredge pump

    Auxilary engine≤89kg/hr
    Total fuel consumption≤154kg/hr
    Extra emergency generator set22kw(30Hp)

    4. Hydraulic Dredge Desgin


    Desgin Leader Dredger

    • Hydraulic pumps drive cutter, winches spud rams


    • Main engine drives pump through gearbox


    • pump inside engineroom


    • Design of high production long distance and reliability, easy control, simple maintenance


    • Australian technology pump


    • Famous European-brand electric system and hydraulic system


    • Engine room big and cool, and easy to maintain

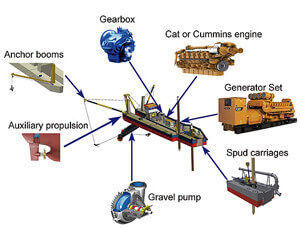

    • Dredge can be equipped with several options such as


    Anchor booms/Spud carriages/Increasing The Dredging Depth/Self-Propell/Pump Booster station/GPS dredging System


    5. About Leader Dredger Hydraulic Dredge Working Environment:


    1.The range of adaptation to the environment: the temperature no higher than 40 degrees Celsius in summer and winter temperatures not lower than -10 degrees Celsius, the air humidity is no more than 30%, wind power does not exceed 7 in rivers.

    2. River ore requirements: sand ratio is no less than 60% (clay content is no more than 10% scree content is no more than 15% gravel content is no more than 15% Wind Stone is no higher than 10%.)

    3. The ship diesel engine should apply to the CIS countries grade use of fuel, oil.

    4. The ship is equipped with night-time lighting system suitable for all weather conditions and working uninterrupted.

    5. 2-3 person operate every time.

    6. The entire dredger is equipped with safety barriers.

    The technical options of the dredger are customized and truly flexible,totally up to the customers requirement and the working environment.


    6. Hydraulic System: German Brand Hydraulic Parts:


    To drive: 1 cutter header, 1 ladder winch, 2 side winches,2 spud rams, 2 hydraulic pumps, and a lot of hydraulic valves The extra emergency pump can drive all hydraulic parts using the extra emergency generator set.


    Leader Dredger Cutter Suction Dredger Parts


    7. Leader Dredger Customer


    Leader Dredger customer


    8. Packing & Delivery

    Leader Dredger Cutter Suction Dredger Packing Deliver


    9. Hydraulic Dredge Picture


    12 Inches Cutter Suction Dredger For Sand Dredging In RiverPortLand Reclamation
