Professional Jet Suction Dredger Manufacturers With 10m Dredging
Depth
1. About Leader Dredger:
Leader Dredger is a manufacturer of hydraulic cutting machine
suction dredgers. It is the only manufacturer specializing in the
production of cutter suction dredgers in China. It integrates
production, design, R&D, export and after-sales service.
China's most professional dredge production companies have branches
in Asia, Russia, the Middle East, Africa and other countries.
2. About Jet Suction Dredger
Jet suction dredger is suitable for waters without large particles
on the bottom such as river reservoirs.
Main principle: The main components of jet suction dredger are high
pressure pump and sand suction pump. The high-pressure water pump
impacts the sediment layer at the bottom of the water through a
high-pressure water gun, and sucks the surrounding sand into the
discharge pipe through a suction pump. The entire working process
can be performed by a nozzle and a sand suction pump.
3. Leader Dredger LD800WJP Techniacl Specifications
General |
| Type | LD800WJP |
| Function | Sand mining |
| |
Dredging Features |
| Standard dredging depth(m) | 10m |
| Maximum mixture capacity(m/h) | 800m³/h |
| Solid capacity(approx) | 160m³/h |
| Dredging pump mode | 200mm(8") |
| |
Principal characteristics |
| Overall length(m) | 22.5m |
| Breadth(m) | 4.2m |
| Draught(m) | 0.8m |
| Discharge distance(m) | 500m |
| |
Dredge pump: |
High-effiffifficiency wear-resistant pump |
Mixture capacity (approx) | 800m³/h |
| Solid capacity(approx) | 160m³/h |
concentration | 20% |
| |
Engine |
Main engine (Cummins NTA855-M) | 224kw |
Auxilliary engine (Cummins 6BTA5.9-GM100) | 100kw |
Total fuel consumption (approx) | 64L/H |
| |
Electric system |
Generator Set | 30kw |
European-brand electric system | |
| |
Winches |
Hoisting hoist | 7.5kw |
Swing winch | 4.5kw |
| |
Production Time |
Available in stock, or 30 working days if not available. |
Delivery |
Carried by container |
4. Main Parts
Electrict Drive High-effiffifficiency wear-resistant pump

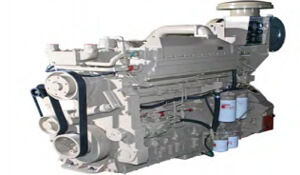

Cummins NT855-M
Marine gearbox
5. Our Services
1. Provide consulting and design services before sales, and provide
scheme support to customers according to their working conditions
and needs.
2. Suggestions on spare parts configuration according to customer's
requirements
3. Provide on-site installation guidance, overall commissioning,
pre-job training, tracking guidance services ( dredger master,
mechanic)
4. Provide one-year after-sales service
5. Providing permanent accessories and consulting services
