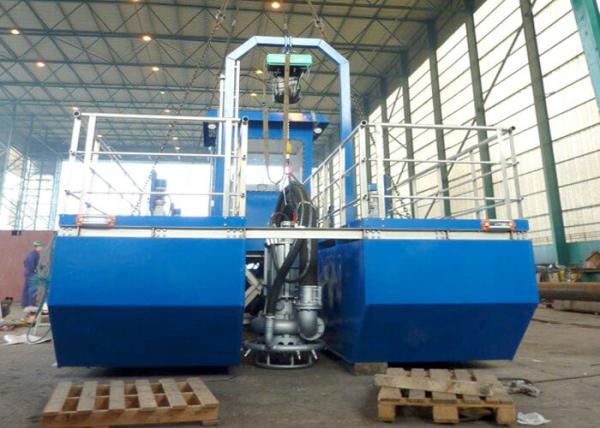

1. Portable Dredge
This is a very convenient equipment for sparse equipment. The pump
is fixed directly by the winch, the pump is submerged, and the mud
is sucked out through a suction pipe.
This type of equipment is very easy to transport, but only for
small ponds.
2. About Leader Dredger
Mainly for international marketing and exporting for the
Dredgers,pipeline,construction machinery etc.
Weifang Leader co isThe only Professional Chinese manufacture for
the cutter suction dredger production which combine:Design and
reserch,Production,export and after sale service.
The Chinese dredge manufacture who has many branch offices in
Asia,Russia,Mid-East,Africa countries etc;
The Chinese manufacture who keep the biggest sale anualy for cutter
suction dredgers.
Leader dredger,on the march to a world famous brand name,is your
ideal choice for dredging machinery!
3. Leader Dredger LD1500PSP Technical Specifications
General |
| Type | LD1500PSP |
| Function | Sand mining |
| |
| |
Dredging Features |
Mixture capacity (approx) | 1500m³/h |
| Standard dredging depth(m) | 3-60m |
| Dredging pump mode | 300mm(14") |
| Solid capacity(approx) | 450m³/h |
| |
| |
Principal characteristics |
| Overall length(m) | 11.8m |
| Breadth(m) | 6m |
Draught (m | 1m |
Discharge distance (m) | 700m |
| |
| |
Dredge pump: |
High-effiffifficiency wear-resistant pump |
Mixture capacity (approx) | 1500m³/h |
| Solid capacity(approx) | 450m³/h |
concentration | 30% |
Moto power | 250kw |
| |
| |
Engine |
Generator set (Cummins KTA19) | 350kw |
Total fuel consumption (approx) | 69L/H |
| |
| |
Electric system |
| European-brand electric system |
| |
Winche |
Three Electric Drive Winches Lock dredger three Anchor |
Hoisting hoist | 11kw |
4. Main Part
Cummins Slient Generator Set
Electrict Drive High-effiffifficiency wear-resistant pump
Electric high-effiffifficiency winch
5. Our Service
1. Provide consulting and design services before sales, and provide
scheme support to customers according to their working conditions
and needs.
2. Suggestions on spare parts configuration according to customer's
requirements
3. Provide on-site installation guidance, overall commissioning,
pre-job training, tracking guidance services ( dredger master,
mechanic)
4. Provide one-year after-sales service
5. Providing permanent accessories and consulting services
