Customize 18 Inch Dredging Equipment 15m Dredging Depth Cutting
Suction Dredger
1. About Leader Dredger
Our company provides professional production and export of
dredgers, including installation and commissioning of dredgers and
permanent after sales. We can also design and manufacture special
models according to user requirements.
Our products have been sold to North America, South Africa, Asia
and the Middle East. They have been well received by most users.
And has branches in multiple countries.
2. Why Choose Leader Dredger
We have accumulated nearly 20 years of experience and made our
products popular in more than 20 countries. We have customized a
lot of dredging equipment for different environments, so we are
very professional in customizing dredgers.
We have produced more than 100 cutter suction dredgers. We always
update our production plan to ensure that our dredgers have the
most advanced performance.
Leader Dredger is famous for its professional production technology
and mature design experience. For different specific construction
environments, we can always make sturdy, efficient, low-cost and
most satisfactory dredgers for customers.
Leader Dredger dredgers can be quickly assembled in a modular
manner.
3. Delivery:
Carried by trucks to the loading seaport, and then by bulk vessels
to the destination seaport.
4.LEADER DREDGER LD3700IP TECHNICAL SPECIFICATIONS
General |
| Type | LD3700IP |
| Function | Sand mining |
| |
Dredging Features |
| Standard dredging depth(m) Maximum mixture | 15m |
| capacity(m/h) | 3700m³/h |
| Solid capacity(approx) | 740m³/h |
| Dredging pump mode | 5000/450mm |
| |
Principal characteristics |
| Overall length(m) | 36m |
| Breadth(m) | 7.9m |
| Draught(m) | 1.4m |
| Discharge distance(m) | 1500m |
| Total dry weight approx(MT) | 165MT |
| Ladder length | 21m |
| |
Dredge pump: Australia technology Pump |
| By alloy cast iron material for better abrasion resistance,
abrasive, hardness, more than68HRC. Bigger working capacity, more
efficiency, driven through gearbox. |
| Maximum mixture capacity(m/h) | 3700m³/h |
| Solid capacity(approx) | 740m³/h |
| |
Engine |
| Main diesel engine(Cummins) | 895kw(1200hp) supply power for dredge pump |
| Total fuel consumption | ≤310kg/hr |
| Extra emergency generator set | 30kw(40Hp) |
| |

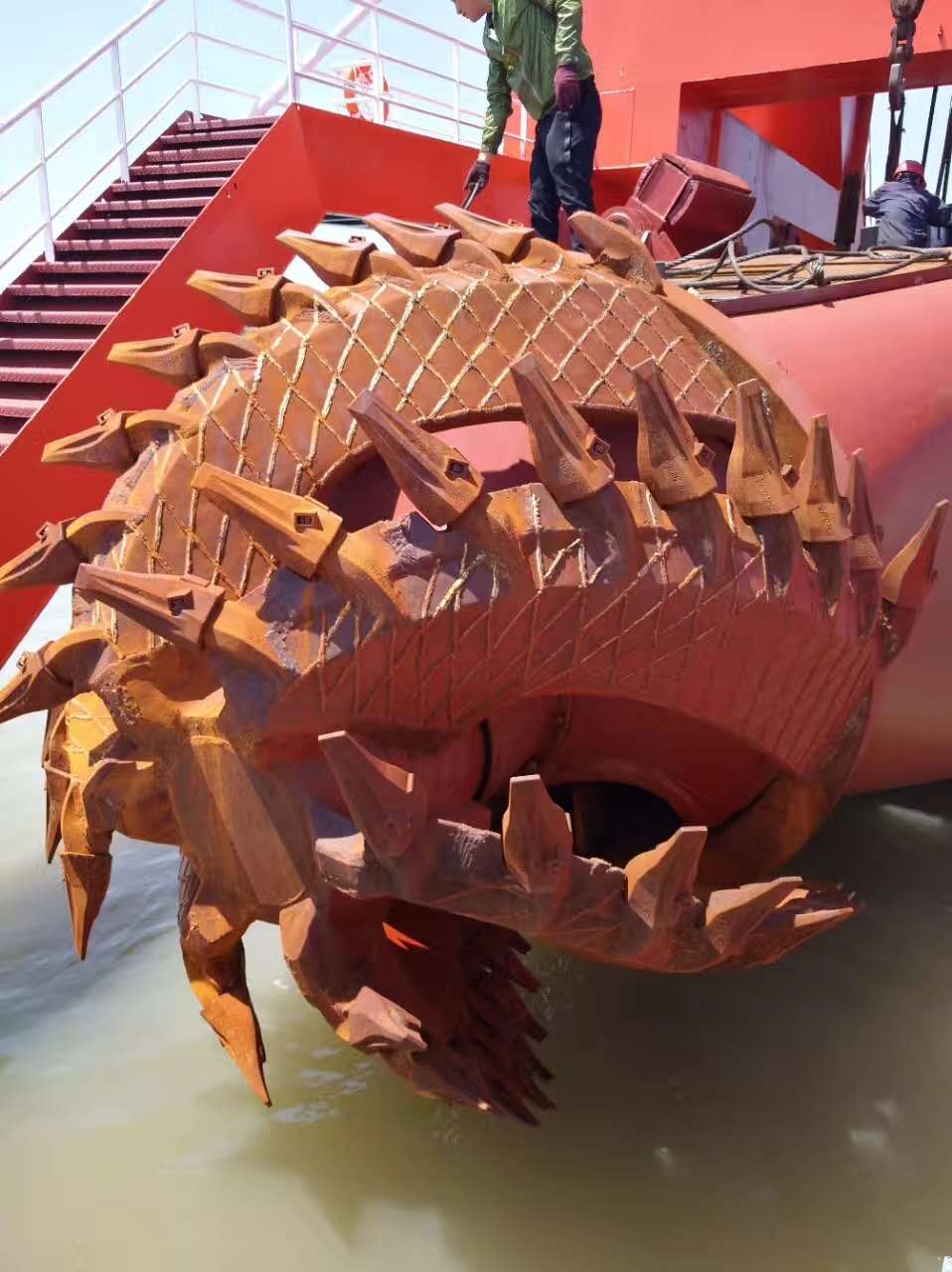

Cutter |
| Power at shaft | 150kw(200Hp) |
| Size | 1700mm |
| Rotation speed | 30rpm |
| |
Winches |
| Ladder winch | 1urnit |
| Swing winches | 2units |
| All winches driven by independent hydraulic system. |
| |
Spuds |
| Quantity | 2pcs |
| Length | 20m |
| Diameter | 560mm |
| |
Deck crane |
| Utting weight | 3MT |
5.Leader Dredger will provide before selling the product:
1, Consulting and design services
2, Provide program support based on customer's working conditions
3, Provide accessories recommendations based on customer
requirements
4, Site installation guide
5, Overall debugging
6, Pre-job training
7, Tracking guidance service
8, Provide one year after-sales
9, Provide permanent accessories or consulting services
6. Hydraulic System: German Brand Hydraulic Parts:
To drive: 1 cutter header, 1 ladder winch, 2 side winches,2 spud
rams, 2 hydraulic pumps, and a lot of hydraulic valves The extra
emergency pump can drive all hydraulic parts using the extra
emergency generator set.
7. Electric System:
European-brand electricsystem Very guaranteed the quality and
operation of the whole dredger for long time
Equipped with an extra 30kw emergency generator set for emergency
power supply
8. Include:
All necessary tools for connecting or disconnecting the
pontoons, and for the maintenance of the dredge pump and all
engines
Toile
Fire fighting apparatus
Life buoy and jackets
Accommodation room
9. Features:
| Easy to assemble and dismantle | Advanced profssional design |
| Deliver by road, rail or sea | Spare parts available |
| One man operation | Completely tested before deliverie |
| Advanced hydraulic system | with air conditioning |
| Water cooled diesel engines | Customizations on users'demand |
10. Production time:
Operators cabin and living room
Available in stock, or 120-160 working days if not available.
