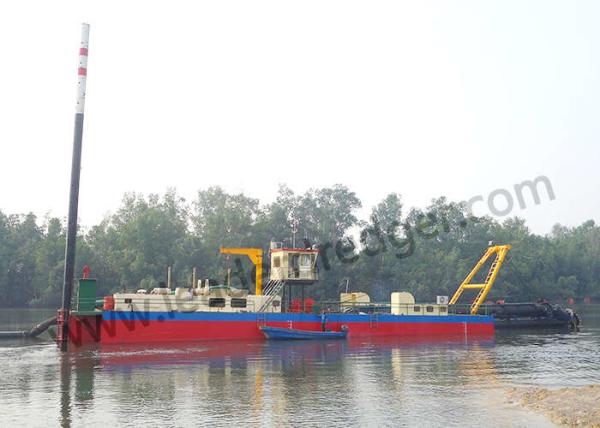

Energy Saving Hydraulic System Sand Lake Cutter Suction Dredger 14
Inch Cummins Engine
I. Energy Saving Hydraulic System Cutter Suction Dredger
Description
The energy saving hydraulic system cutter suction dredger designed
by Leader Dredger can reduce the operating cost of dredgers, and at
the same time can guarantee the same power as other dredgers. This
design can reduce daily operating costs for customers in the long
run This is great .
For the hydraulic sysytem of cutter suction dredger, this is very
practical, and the number of staff can be well saved through the
hydraulic system. And can operate the equipment of the whole ship
through the console.
2. About Leader Dredger Cutter Suction Dredger Service:
1. A customer questionnaire will be provided before the customer
purchases, and the ideal cutter suction dredger will be recommended
to the customer according to the actual situation of the project.
When the conventional series of cutter suction dredger cannot meet
the requirements, Leader Dredger can customize the dredger for
customers.
2. Leader Dredger will add additional equipment or reduce the
standard equipment according to the requirements, so that customers
can have a more reasonable cutter suction dredger
3. Leader Dredger provides installation instructions now to help
customers conduct driving training for operators
4. Leader Dredger provides one-year after-sales service and
provides permanent parts consulting services
3.Cutter Suction Dredger Desgin
• Hydraulic pumps drive cutter, winches spud rams
• Main engine drives pump through gearbox
• pump inside engineroom
• Design of high production long distance and reliability, easy
control, simple maintenance
• Australian technology pump
• Famous European-brand electric system and hydraulic system
• Engine room big and cool, and easy to maintain
• Dredge can be equipped with several options such as
Anchor booms/Spud carriages/Increasing The Dredging
Depth/Self-Propell/Pump Booster station/GPS dredging System
4. LEADER DREDGER LD1200IP TECHNICAL SPECIFICATIONS
Dredging Features |
| Standard dredging depth(m) Maximum mixture | 12m |
| capacity(m/h) | 1200m³/h |
| Solid capacity(approx) | 240m³/h |
| Dredging pump mode | 350/300mm |
| |
Principal characteristics |
| Overall length(m) | 28m |
| Breadth(m) | 6.8m |
| Draught(m) | 1.3m |
| Discharge distance(m) | 700m |
| Total dry weight approx(MT) | 120MT |
| Ladder length | 16m |
| |
Dredge pump: Australia technology Pump |
| By alloy cast iron material for better abrasion resistance,
abrasive, hardness, more than68HRC. Bigger working capacity, more
efficiency, driven through gearbox. |
| Maximum mixture capacity(m/h) | 1200m³/h |
| Solid capacity(approx) | 240m³/h |
| |
Engine |
| Main diesel engine(Cummins) | 448kw(600hp) supply power for dredge pump |
| Total fuel consumption | ≤89kg/hr |
| Extra emergency generator set | 22kw(30Hp) |
5. Features:
| Easy to assemble and dismantle | Advanced profssional design |
| Deliver by road, rail or sea | Spare parts available |
| One man operation | Completely tested before deliverie |
| Advanced hydraulic system | with air conditioning |
| Water cooled diesel engines | Customizations on users'demand |
6.Dredger Parts:
7. Production time:
Operators cabin and living room
Available in stock, or 120-160 working days if not available.
8.Cutter Suction Dredger Delivery:
Carried by trucks to the loading seaport, and then by bulk vessels
to the destination seaport.
9. About Cutter Suction Dredger Customer
10. Small Sand Cutter Suction Dredger
