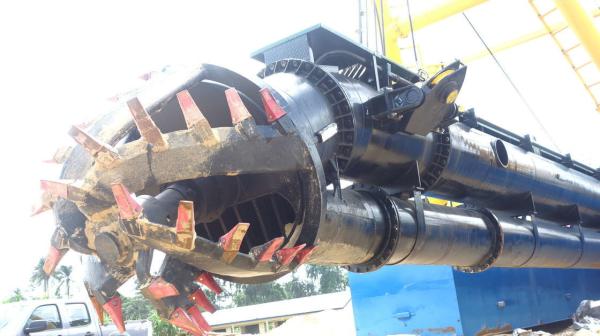

18 Inch Cutter Suction Dredger For River Dredging Or Lake Dredging
1. About Leader Dredger Cutter Suction Dredger
Leader Dredger Co., Ltd has many years of production experience and
can provide various advanced cutter suction dredgers. And can be
customized according to customer requirements, we have a complete
and professional R & D team. Leader Dredger looks forward to
working with you
2. Why Choose Leader Dredger
1. Leader Dredger has accumulated nearly 20 years of experience,
making our products popular in more than 20 countries and regions.
We have customized a lot of professional grade cutter suction
dredger according to customer projects. We are very professional in
the field of dredger manufacturing .
2. Leader Dredger conducts a meeting of all designers and engineers
every quarter, and constantly updates our production plan to ensure
that the dredger always has the most advanced performance.
3. We have exported dredgers more than 100 times. We are skilled in
all financing business and export business.
4. When the cutter suction dredger arrives at the destination port,
the technical staff of Leader Dredger will quickly be in place to
help our customers assemble the dredger and debug all the
components of the dredger
3. Delivery:
Carried by trucks to the loading seaport, and then by bulk vessels
to the destination seaport.
4.LEADER DREDGER LD3700IP TECHNICAL SPECIFICATIONS
Dredging Features |
| Standard dredging depth(m) Maximum mixture | 15m |
| capacity(m/h) | 3700m³/h |
| Solid capacity(approx) | 740m³/h |
| Dredging pump mode | 5000/450mm |
| |
Principal characteristics |
| Overall length(m) | 36m |
| Breadth(m) | 7.9m |
| Draught(m) | 1.4m |
| Discharge distance(m) | 1500m |
| Total dry weight approx(MT) | 165MT |
| Ladder length | 21m |
| |
Dredge pump: Australia technology Pump |
| By alloy cast iron material for better abrasion resistance,
abrasive, hardness, more than68HRC. Bigger working capacity, more
efficiency, driven through gearbox. |
| Maximum mixture capacity(m/h) | 3700m³/h |
| Solid capacity(approx) | 740m³/h |
| |
Engine |
| Main diesel engine(Cummins) | 895kw(1200hp) supply power for dredge pump |
| Total fuel consumption | ≤310kg/hr |
| Extra emergency generator set | 30kw(40Hp) |
5. Desgin
• Hydraulic pumps drive cutter, winches spud rams
• Main engine drives pump through gearbox
• pump inside engineroom
• Design of high production long distance and reliability, easy
control, simple maintenance
• Australian technology pump
• Famous European-brand electric system and hydraulic system
• Engine room big and cool, and easy to maintain
• Dredge can be equipped with several options such as
Anchor booms/Spud carriages/Increasing The Dredging
Depth/Self-Propell/Pump Booster station/GPS dredging System
6. Hydraulic System: German Brand Hydraulic Parts:
To drive: 1 cutter header, 1 ladder winch, 2 side winches,2 spud
rams, 2 hydraulic pumps, and a lot of hydraulic valves The extra
emergency pump can drive all hydraulic parts using the extra
emergency generator set.
7. Cutter Suction Dredger Features:
| Easy to assemble and dismantle | Advanced profssional design |
| Deliver by road, rail or sea | Spare parts available |
| One man operation | Completely tested before deliverie |
| Advanced hydraulic system | with air conditioning |
| Water cooled diesel engines | Customizations on users'demand |
8. Production time:
Operators cabin and living room
Available in stock, or 120-160 working days if not available.
