Port Construction Large Dredging Equipment Submersible Pump Cutter
Suction Dredger
1. Design
1. Famous European-brand electric system and hydraulic system

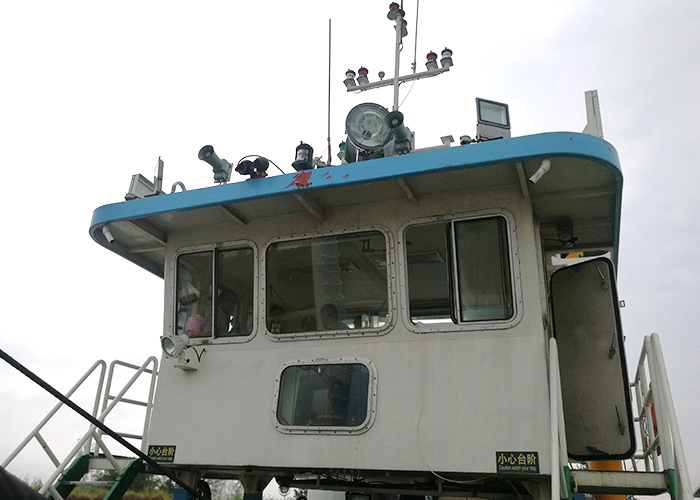

2. Engine room big and cool, and easy to maintain
3. pump inside engineroom
4. Dredge can be equipped with several options
5. Australian technology pump
6. Design of high production long distance and reliability, easy
control, simple maintenance
7. Hydraulic pumps drive cutter, winches spud rams
8. Main engine drives pump through gearbox
9. Such as:Anchor booms/Spud carriages/Increasing The Dredging
Depth
Self-Propell/Pump Booster station/GPS dredging System
2. Why Choose Leader Dredger Submersible Pump Cutter Suction Dredger?
Mainly for international marketing and exporting for the
Dredgers,pipeline,construction machinery etc.
Weifang Leader co isThe only Professional Chinese manufacture for
the cutter suction dredger production which combine:Design and
reserch,Production,export and after sale service.
The Chinese dredge manufacture who has many branch offices in
Asia,Russia,Mid-East,Africa countries etc;
The Chinese manufacture who keep the biggest sale anualy for cutter
suction dredgers.
Leader dredger,on the march to a world famous brand name,is your
ideal choice for dredging machinery!
3. Leader Dredger LD5500SP Technical Specifications
A . Dredging Features
| Standard dredging depth(m) Maximum mixture | Max 20m |
| capacity(m/h) | 5500m³/h |
| Solid capacity(approx) | 1600m³/h |
| Dredging pump mode | 600/550mm |
B . Principal characteristics
| Overall length(m) | 43m |
| Breadth(m) | 10m |
| Draught(m) | 1.5m |
| Discharge distance(m) | 2000m |
| Total dry weight approx(MT) | 300MT |
| Ladder length | 31m |
C . Dredge pump: Australia technology Pump
| By alloy cast iron material for better abrasion resistance,
abrasive, hardness, more than68HRC. | Bigger working capacity, more efficiency, driven through gearbox. |
| Maximum mixture capacity(m/h) | 5500m³/h |
| Solid capacity(approx) | 1600m³/h |
4. Submersible Pump Cutter Suction Dredger Feature
1. You can choose reliable Chinese brand parts to reduce costs
2. Follow manufacturing guidelines: CCS-ZC standard
3. Lifetime technical assistance
4. Western Dredge brand parts, easy to find worldwide
5. Can visit our sales team, design team, manufacturing team 24/7
6. Obtained CE ISO certificate to prove high quality
5. FAQ
1. Is our company a direct or indirect manufacturer?
-Our company is a direct manufacturer.
2. What are the main products of our company?
-Our main product is cutter suction dredger.
3. Are our products certified or patented?
-Yes, we only provide certified products.
4. Can we provide good after-sales service?
-Yes, the warranty period of all our products is one year, and all
spare parts will always provide fast and cheap service.
6. How To Choose Cutter Suction Dredger
7. Leader Dredger Customer

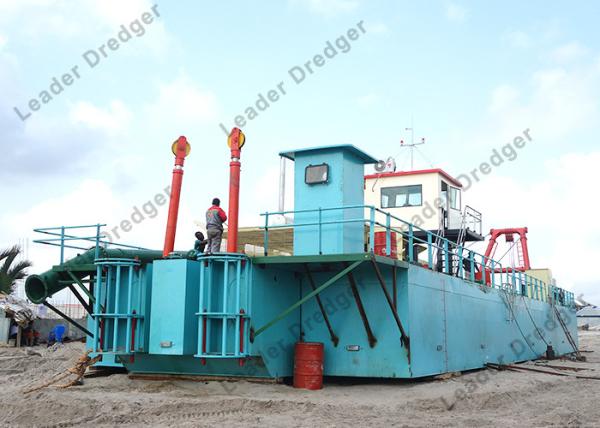

8. Submersible Pump Cutter Suction Dredger Testing Picture
